How to Create a Waveform Visual From Audio

By HenrikUpdated Aug 7, 20266 min read

Trim audio, check quality, generate waveform images or videos, and prepare cleaner visuals for posts, notes, or support.

A waveform is useful when audio needs to be seen as well as heard. It can help with support notes, blog posts, video thumbnails, podcast clips, before-and-after comparisons, and quick review of silence or loud sections.

The best waveform comes from a prepared clip, not a messy full-length recording.

Pick the Waveform Format by Job

A waveform should make the audio easier to understand. Choose the visual based on what the viewer needs to do next.

Waveform use	Better format	Prepare the audio by	Check before sharing
Support note	Still image	Trim around the issue	Problem is visible and audible
Social preview	Waveform video	Shorten and normalize the clip	Opening seconds are clear
Blog or tutorial	Still image	Cut to the explained section	Visual matches the text
Before/after comparison	Matched stills	Use the same time range	Scale and labels are not misleading
Noise or artifact review	Spectrogram plus note	Keep the affected section	Visual supports, not replaces, listening

Checkpoint	Tool	Why it matters
1	Audio Trimmer	Cut the source to the section you want to show.
2	Recording Quality Checker	Confirm the clip is not silent, clipped, or unexpectedly long.
3	Audio Normalizer	Level a quiet clip before making a shareable preview.
4	Audio Waveform Generator	Create a still PNG waveform.
5	Audio Waveform Video Maker	Create a simple waveform video with the audio.
6	Audio Spectrogram Generator	Use a frequency-style visual when noise or artifacts matter.

Use the simplest visual that solves the task.

Step 1: Trim the Source First

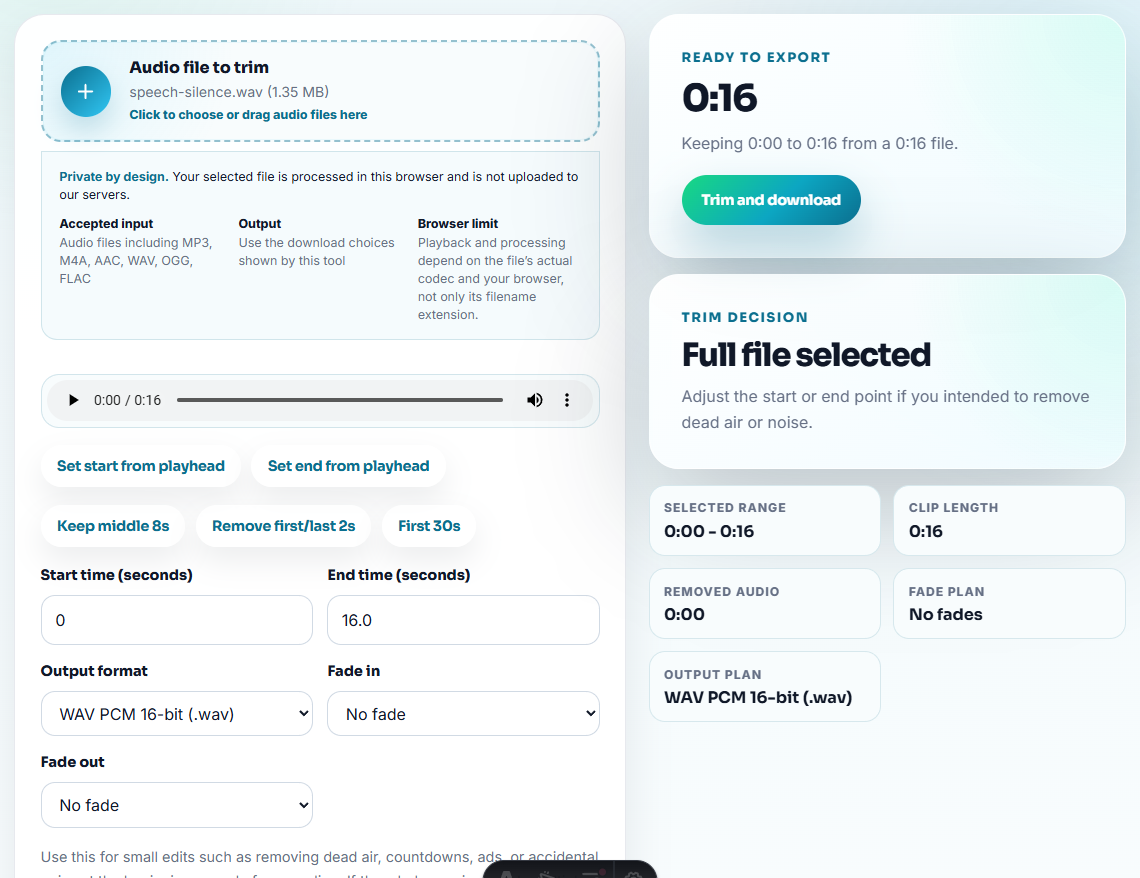

Do not generate a waveform from an entire long recording unless the full duration is the point. Use the Audio Trimmer to isolate the section you want to show.

Trim first when:

You need a support screenshot of a problem section.
A blog post only discusses one clip.
A podcast preview needs a short highlight.
A waveform would be unreadable at full length.

Keep the original audio unchanged and export a visual-ready copy.

Step 2: Check the Clip

Open the clip in the Recording Quality Checker. A waveform from a silent or clipped file can look dramatic while still being useless.

Check:

Duration.
Silence.
Peaks.
Channel count.
Whether the clip is the intended audio.

If the clip is too quiet for a waveform video, normalize it lightly before making the video version.

Step 3: Choose Image or Video

Use the Audio Waveform Generator when you need a still image:

Help article illustrations.
Support notes.
Before-and-after visuals.
Blog or tutorial screenshots.
Quick visual inspection.

Use the Audio Waveform Video Maker when you need a playable clip:

Social previews.
Podcast snippets.
Audio posts where the sound should play.
Short demos.

A still waveform is easier to inspect. A waveform video is better for sharing audio.

Step 4: Use Spectrograms for Different Questions

A waveform shows amplitude over time. It does not show frequency detail well. Use the Audio Spectrogram Generator when you need to see hum, hiss, high-frequency artifacts, or suspicious silent-looking sections.

Use waveform for structure. Use spectrogram for frequency clues.

What a Waveform Can and Cannot Prove

A waveform is a useful clue, but it is easy to overread it. Treat it as a map to the part worth listening to, not as the final quality judgment.

Waveform clue	It can show	It cannot prove
Flat section	Silence, mute, or very low level	Whether silence was intentional
Tall repeated peaks	Loud sections or possible clipping	Whether the sound is pleasant or distorted
Sudden cutoff	A rough edit or missing ending	Why the recording stopped
Uneven left/right shape	Possible channel imbalance	Whether mono conversion will sound good
Dense loud block	Compressed or consistently loud audio	Whether speech is intelligible

Pair the waveform with a short listening note. That gives support, editors, or reviewers a useful visual without pretending the image answers every audio question.

When Waveform Visuals Mislead Reviewers

Waveforms are easy to compare badly. If two visuals use different durations, scales, or processed copies, they can imply a change that is not really there.

Visual mistake	Why it misleads	Better setup	Note to include
Different time ranges	One clip may look denser only because it is longer	Use matched sections	”Same time range used.”
Different vertical scale	The louder-looking file may not be louder	Keep the same scale when comparing	”Scale matched for comparison.”
Normalized after file only	Loudness looks like improvement	Normalize both or neither	”Level matching noted.”
Cropped silence	Missing gaps may hide the real issue	Show enough lead-in and ending	”Silence cropped from display copy.”
No listening note	Viewers over-trust the image	Add one sentence about what to hear	”Waveform is a navigation aid.”

Step 5: Name the Visual Clearly

A waveform file should describe the clip, not just the tool.

Good names:

2026-07-30 - webinar-intro-waveform.png
voice-note-normalized-preview.webm

Bad names:

final.webm
new-audio-video.webm

Clear names make visuals easier to reuse in support, tutorials, and content production.

Quick Answers Before You Continue

What should I do before generating an audio waveform?

Trim the source to the useful section, check that the audio is not silent or clipped, then generate the waveform image or video from the final clip.

Should I use a waveform image or waveform video?

Use a waveform image for documentation, support, blog posts, or quick visual review. Use a waveform video when you need a playable social clip or podcast preview.

Can a waveform prove audio quality?

No. A waveform helps you see loudness shape, silence, and rough edits, but it does not prove frequency quality, source legality, or metadata accuracy.
